Tastiera macro DOIO KB16-02 Tastiera macro aggiornata
[DESCRIZIONE]
La tastiera macro DOIO KB16-02 è un avanzamento rispetto a DOIO KB16-01, offre connettività dual mode e fino a 9 livelli che possono essere personalizzati. Inoltre, sono disponibili nuove opzioni di colore.
Connessione dual-mode
Supporta USB di tipo C cablato, Bluetooth wireless e due modalità di connessione.
Aggiornamento layer modificabile
On la base di KB16-01 supporta 4 layer modificabili, KB16-02 è aggiornata per supportare fino a 9 layer modificabili.
Triple Knob Macro Pad
Un deck di controllo con tre manopole dedicate per triplicare il tuo controllo. Questa piccola console aggiunge un'immensa quantità di funzionalità personalizzabili a qualsiasi configurazione della tastiera con tre manopole cliccabili dedicate (una gigante e due più piccole).
Prese sostituibili a caldo
Sono disponibili anche 16 prese tradizionali per interruttori meccanici sostituibili a caldo per funzioni macro più classiche, è compatibile con la maggior parte degli interruttori meccanici a 3 e 5 pin , come Cherry, Gateron, Otemu, Kailh e altri switch MX e relativi cloni.

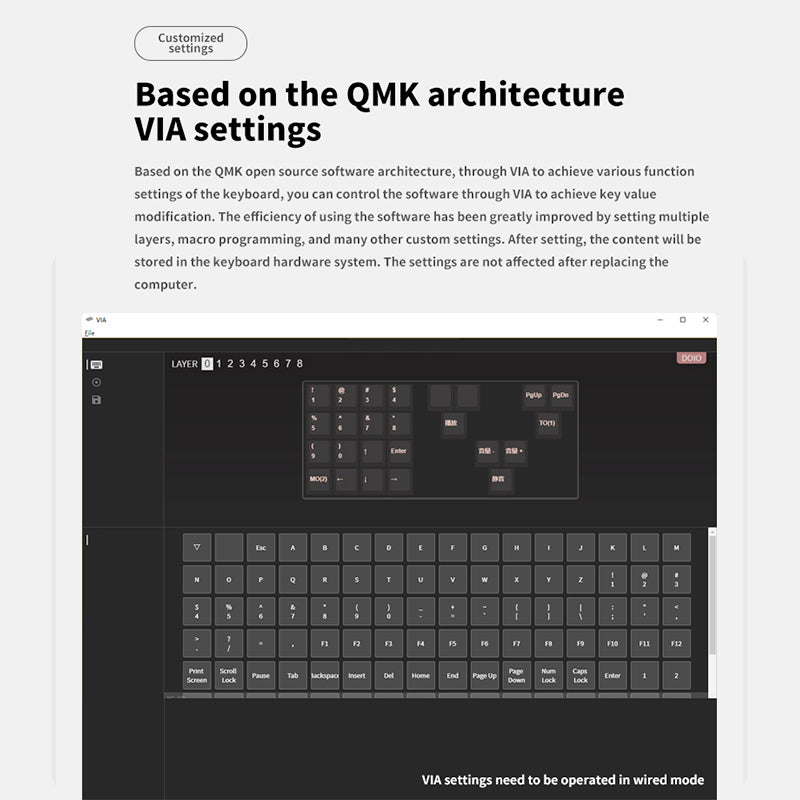

Supporta QMK e VIA programmabili
Tutto questo è programmabile tramite VIA e QMK con 9 distinti livelli di funzioni in modo da poter diventa più specifico su quali segnali stai inviando.
Custodia in alluminio e acrilico con display OLED
[/DESCRIPTION]
[SCARICA]
Driver per il download del software DOIO KB16-02 QMK/VIA - Win
[/DOWNLOAD]
[SPECIFICHE]
| Generale |
Marca: DOIO Tipo: tastiera macro Modello: KB16-02 |
| Specifica |
Layout tastiera: 16 tasti + 3 manopole Connettività: USB di tipo C, Bluetooth wireless Programmabile: impostazione firmware QMK/VIA (supporta fino a 9 livelli) Schermo: schermo OLED Profilo tasti: XDA Interruttori: Gateron G Yellow Pro (lineare, 50 gf) Materiale: alluminio anodizzato 6063 + base acrilica traslucida Materiale manopole: alluminio CNC PCB: sostituibile a caldo Retroilluminazione: retroilluminazione RGB |
| Peso e dimensioni |
Peso del prodotto: 0,49 kg Peso della confezione: 0,49 kg Dimensioni del prodotto (L x P x A): 14,2x9,5x3 cm |
| Contenuto della confezione |
1 tastiera 1 cavo di tipo C Estrattore per interruttori/tasti 1 x 2 in 1 1 x Manuale dell'utente |
[/SPECIFICATIONS]
Customer Reviews
I recently ordered the DOIO KB16B-02 Macro Keyboard Updated Macro Pad and I am very pleased with my purchase. Shipping was as expected (international order about 10 working days), and the product arrived in good condition, i.e. with no damage. Additionally, the package tracking worked fairly well, keeping me updated throughout the shipping process.
The build quality of the macro pad is nice, and it feels quite solid and heavy for this small device. Customizing the the key layout using VIA is straightforward and easy, if you know how to. RGB can be toggled by using different pre-defined combos on the pad. However, I got this one later when configuring the keys in VIA. A better How-to guide would be helpful with that. The colors of the keyboard are as shown on the webpage. If in sleep-mode, reconnects quite fast and can be used again almost immediately.
Both options (wireless and cable) are working great, and it did not lost much battery when not using for 2 weeks during a leave.
Overall, a great product and a smooth purchasing experience, with only few suggestions for improvement:
- better guidance for initial installing/using
- images of pre-configured layouts would be helpful
- hint that this device does not has an on/off switch (but goes into sleep after some minutes without using it), which might be a concert for people that need to travel often
Worked on day one , next day couldn’t get it to work! Computer doesn’t recognize device. Right now it is a big paper weight. Hopefully I eventually can get it to work. I’ll update my review if I can get it work on a consistent basis.
DOIO KB16B-02 Macro Keyboard: perfect!
Whatgeek's service: perfect!
Delivery time: 10/10
+ they also give you 12% discount for your next purchase.
Experience: 10/10
100% recommended
Highly recommended depending on your use case. The device can do so much but it is not perfect. If you need a macropad for simple macros, then this device is for you. If you need delayed macros, alot of complex macros then I would look in other variations/brands.
Glad it has so many layer (9 for those who missed it). I love the build quality. So far it is holding up well (time will tell about the longevity). Via and vial support is great for semi-techy people. Tho, It is not easy for beginners.
For the cons:
-no manual was odd.
-no power button, which making putting it in a bag challenging as any accidental key press will wake it up and drain battery. (But standby/sleep mode fixes that to some extent)
Points to note:
-no delayed macros (as far as i researched and attempted)
-cant configure knobs to switch between layers. (When done it registers random keys instead like U or M instead of TO2 or TO1)
-highly recommend to look up KC modifiers and KC keys to configure simple macros using the “Any” button under “Special” tab in VIA. Ex: Control+Z = C(KC_Z) and Control+Shift+Z = C(S(KC_Z))
(If m not mistaken)
-otherwise there are 15-16 configurable macros on VIA
Let's start from the fact that the product can be brought to a higher level if only it were better supported in the software field. The best usability is only found with VIA 1.3.1, an old version which is no longer available on its official website. The configuration can also be accessed with VIA 3, but an arrangement must be made to the json code.
For the rest, i.e. the materials, the structure, the knobs etc., I find it a high-end product, far superior to many other macropads present in the most famous stores.
I would add that I would like to have support for the 2.4 GHz wireless connection, since Bluetooth has less performance and among other things it is not clear how to deactivate/activate it.
